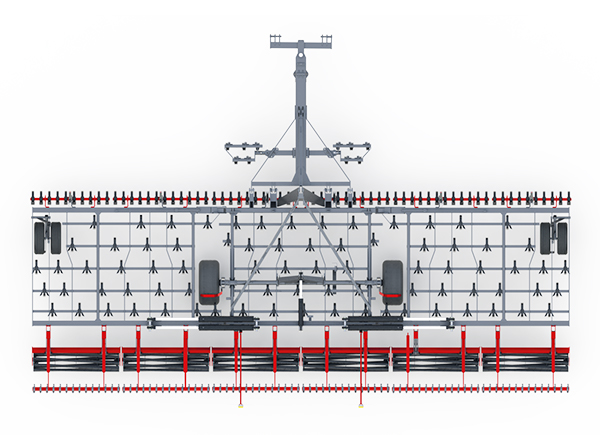

- drawbeam
- spiral rippers behind the tractor wheels
- smooth adjustment of the working depth
- side support wheels 24×8.00 – 14.5
- 5 rows of spring tines 45×12 mm
- tubular roller Φ400 mm
- road wheels
- 340 / 55-16 – for the 6-8 m version
- 400 / 60-15.5 – for the 10 m version
- varnish coat with enhanced parameters

- reinforced tooth 45×12 mm with goose foot
- front cross or leveling board
- tine harrow behind the shaft
- LED lighting





















TINES
45×12 mm
the machine works on a 45×12 mm tine, optionally it can be equipped with 45×12 mm reinforced tines with a gooseneck


CROSS | LEVELING BOARD
optional cross or front leveling bar
equip the machine with a manual spring front bar or a front leveling bar
Technical data
![]() |
|m| | 6 | 7 | 8 | 10 |
![]() |
|id| | 4700 | 4701 | 4702 | 4703 |
![]() |
|kg| | 3850 | 3950 | 4150 | 4450 |
![]() |
|KM| | 120 | 160 | 190 | 250 |
![]() |
|szt.| | 53 | 63 | 73 | 83 |
![]() |
|m| | 6 | 7 | 8 | 10 |
![]() |
|id| | - | - | - | - |
![]() |
|kg| | 3850 | 3950 | 4150 | 4450 |
![]() |
|KM| | 120 | 160 | 190 | 250 |
![]() |
|szt.| | 33 | 39 | 45 | 51 |
