REX 560 disc harrows are used to undercut and mix stubble and post-harvest residues. High work efficiency with relatively low power demand.
The machine is optimally suited for shallow stubble cultivation to stimulate volunteer germination, break capillarity and prepare for sowing. Mix in – even difficult – harvest residues without clogging the machine. Problem-free mixing of organic fertilizers, i.e. manure, slurry, soil fertilization. The machine leaves behind finely compacted soil with the best conditions for plant emergence. Two rows of discs with a diameter of Ø560 mm allow you to effectively cut and mix plant residues. Tubular shaft Ø540 mm as standard and optional V-RING/T-RING Ø600 mm or STEEL-PACK Ø600 mm.
TOOTHED DISCS
REX has in its assortment a toothed disc Ø560 mm, 4 mm thick, solidly mounted on a maintenance-free hub, attached individually to the leg. This, in turn, is mounted on a frame with a triangular rubber protection. This guarantees solid protection for years.
Hydraulic adjustment of work
The standard REX 560 range includes a working depth adjustment system based on hydraulic cylinders. Comfortable working depth adjustment without having to leave the tractor cabin.

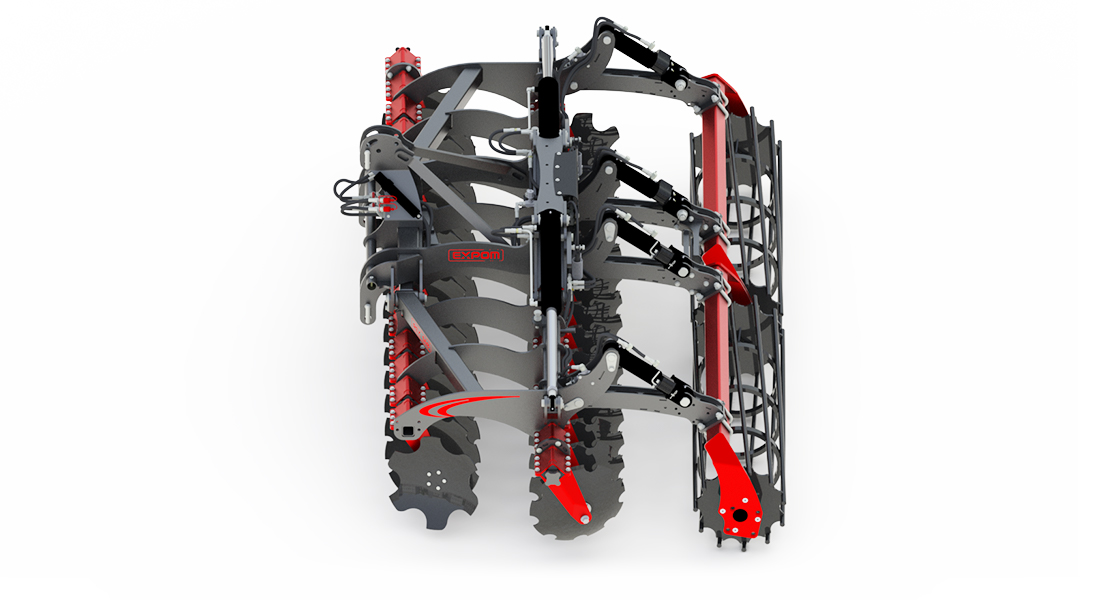

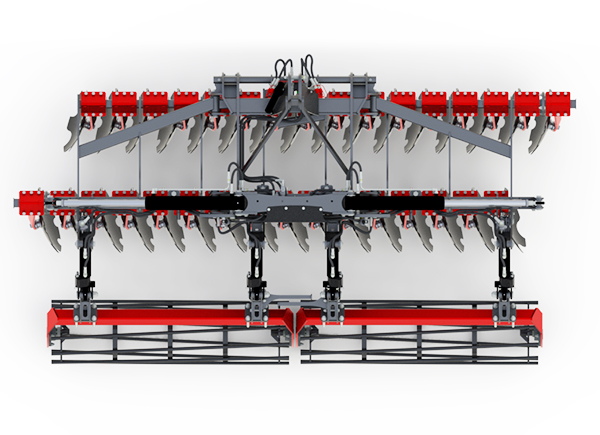

REX 560 foldable
Standard equipment
➲ ground cleareance 570 mm
➲ distance between the beams 800 mm
➲ 3-point hitch
➲ hydraulic folding frame with 2 cylinders
➲ stable support foot
➲ two rows of toothed discs Ø560 mm
➲ plate thickness 4 mm
➲ maintenance-free hub
➲ rubber protection for each plate
➲ hydraulic lock during transport
➲ hydraulic adjustment of working depth on the roller
➲ varnish coating with improved parameters
➲ side shield screens
➲ tubular roller Ø540 mm
OPTIONAL ROLLERS
STEEL-PACK Ø600 mm
V-RING/T-RING Ø600 mm
STEEL-PACK Ø600 mm
Constructed of closed, pair-welded steel plates with toothed working edges. Adjustable scrapers are mounted between the discs. The roller shreds the soil very well and compacts it to a great depth thanks to the high weight and narrow working edges of the discs. Cuts clods and crushes clods, pushes stones deep into the soil. When cultivating stubble, the crop residues are well mixed with the soil. Thanks to the smooth surface, the shaft does not tend to stick.
V-RING/T-RING Ø600 mm
V/T shape ring construction with adjustable scrapers. This roller is used on lumpy soils and soils with a tendency to dry out quickly. Thanks to the use of the roof roller, the clods are fragmented, and the ring construction of the roller compacts the roller in strips, significantly affecting the better soaking of the soil.
ACCESSORIES
SPECIFICATION
HYDRAULICALLY FOLDABLE, MOUNTED
|
|||
|---|---|---|---|
Working width |m|
|
4
|
5
|
6
|
Catalog number |id|
|
4314
|
4315
|
4316
|
Required power |HP|
|
130
|
150
|
170
|
Weight |kg|
|
2760
|
3120
|
3490
|
Number of discs |pcs.|
|
32
|
40
|
48
|
