ASTRA

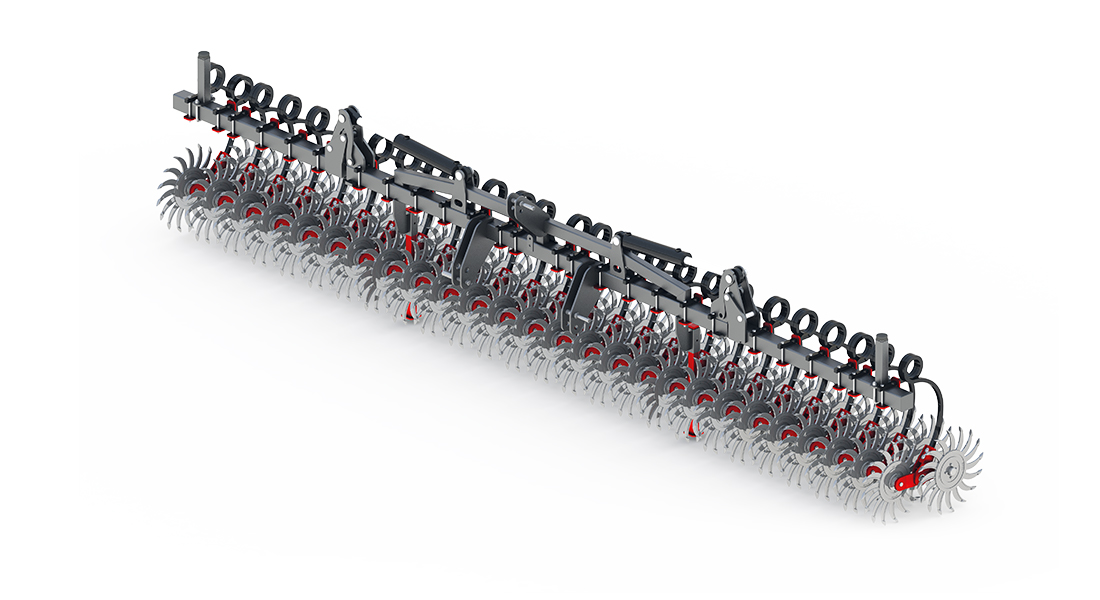

Rotor harrows hydraulically foldable, mounted

6,2 m

ASTRA rotor harrows are used to loosen the soil and remove weeds. They can be used in all soil conditions, they are especially useful for heavily dried soil.

The applied rotary rotors perfectly break up the soil crust. The weeds are pulled out and are left on the surface because the soil is heavier and sinks to the ground faster. The harrows can be used in almost all crops such as: corn, sunflower, soybeans, etc. with a plant height of 10-25 cm. Driving speed 10-25 km/h. Rotary rotors are made of special cast iron, mounted on rolling bearings. They are mounted oscillatingly to a special spring tooth 25×25 mm ensuring the appropriate pressure. The high speed of the harrow reduces costs and shortens the time of care treatments.

ASTRA TWO-BEAM

The ASTRA rotor harrow is available in a single or double beam version

SPRING SUSPENSION ROTARY STARS

Rotating stars mounted on rolling bearings are mounted on a 25×25 mm spring tooth

The essence of the operation of the rotary harrow are the teeth that rotate in the horizontal axis, being a working item. Their role is to break up clods of soil and intensively mix it.

ASTRA

Standard equipment

➲ rotatnig rotors Ø540 mm

➲ spring tines 25×25 mm

➲ stable support foot

➲ coupling pins cat. II – III

➲ lateral distance between the tracks of the rotors 120 mm

➲ hydraulic folding frame with 2 cylinders

➲ varnish coating with improved parameters

ACCESSORIES

SPECIFICATION

HYDRAULICALLY FOLDALBE, MOUNTED
FRAME TYPE
ONE-BEAM
TWO-BEAM
szerokosc Working width |m|
6,2
6,2
numer kataogowy Catalog number |id|
5003
5002
Wymagana moc Required power |HP|
90
90-100
Waga Weight |kg|
1415
1710
Number of rotating stars |pcs.|
52
52
