WICHER

trailed

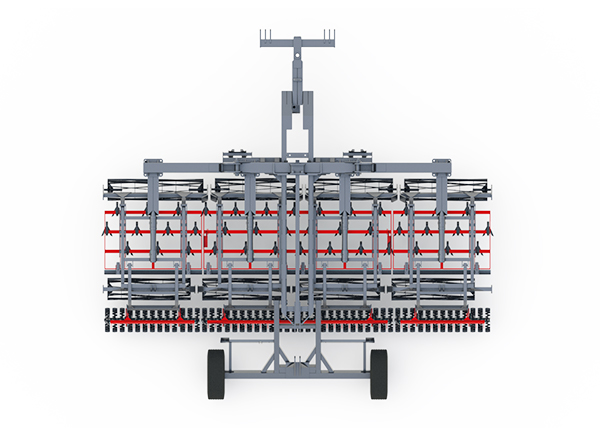

The WICHER pre-sowing cultivator is a modern cultivation machine available in working widths from 4 to 5.7 m. The work of this cultivator can be divided into five stages:

1. Loosening the tracks (ruts after the tractor has passed) with spring-tensioned conditioners.

2. Crushing with the use of nine-string front rollers. The front and rear string rollers support the entire unit and are mounted on bearing units.

3. Loosening the soil: this activity is performed by reinforced tines of the cultivator type with the so-called 180 mm wide goose foot.

4. Fragmentation and leveling: at this stage, the main role is played by the rear string roller and the leveling board located directly behind it. The shaft breaks up lumps and lumps, ensuring a very good lumpy structure.

5. Compaction – secondary compaction and final preparation of the soil for sowing are performed by a pin roller with a diameter of 370 mm.

The depth is easily adjusted by means of an adjusting rod.

Field Cultivator WICHER trailed

  • drawbeam
  • spiral rippers behind the tractor wheels
  • front string roller Φ335 mm
  • three rows of tines 32×12 mm with reinforcement ended with a 180 mm goose foot
  • Adjustable strip board
  • side covers at the height of the rear string roller
  • rear string roller Φ335 mm
  • rear pin roller Φ370 mm
  • varnish coat with enhanced parameters
  • straight tooth 32×12 mm JACKPOT
  • rear string roller instead of pin roller Φ370 mm
  • LED lighting

Technical data

|m| 4 4,5 5,3 5,7
|id| 1109 1106 1107 1108
|kg| 2650 2720 2950 3030
|KM| 120-140 145-155 160-170 170-180
|szt.| 26 30 34 39
